Adult Diaper Machine Full Servo Full Automatic Adult Diaper Packing Machine Production Line

Product Details:

Place of Origin:	Fujian,China
Brand Name:	DNW Machine
Certification:	CE,IOS9001
Model Number:	DNW-AD59

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	180 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets /year

Contact Now

Detailed Product Description

Marketing Type:	New Product 2022	Product Type:	Diaper Packing Machine
Place Of Origin:	Fujian,China	Voltage:	380V, 50HZ
Warranty:	1 Year	Machinery Test Report:	Provided
Applicable Industries:	Manufacturing Plant	Video Outgoing-inspection:	Provided

Low Cost Adult Diaper Manufacturering Mchinery

Drive system:

Timing belt and flat belt are imported products,and all the key parts are imported bearings.

Product size: M: 680*450 L: 800*650XL: 950*760

Control system:

PLC control system,operating on the touch screen,man-machine interface

Item No.:
DNW-137
Payment:
30% T/T deposit,70% Balance before shipping
Product origin:
China
Color:
Customized
Shipping port:
Xiamen
Lead Time:
About 180days
Price Range:
$610000-$865000/set

Product Details

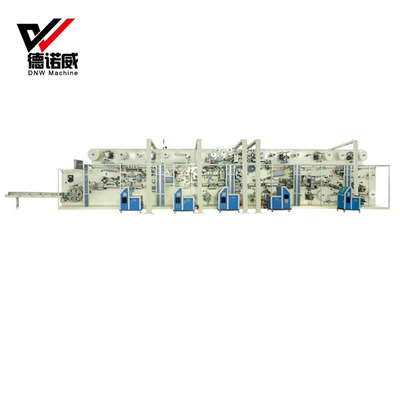

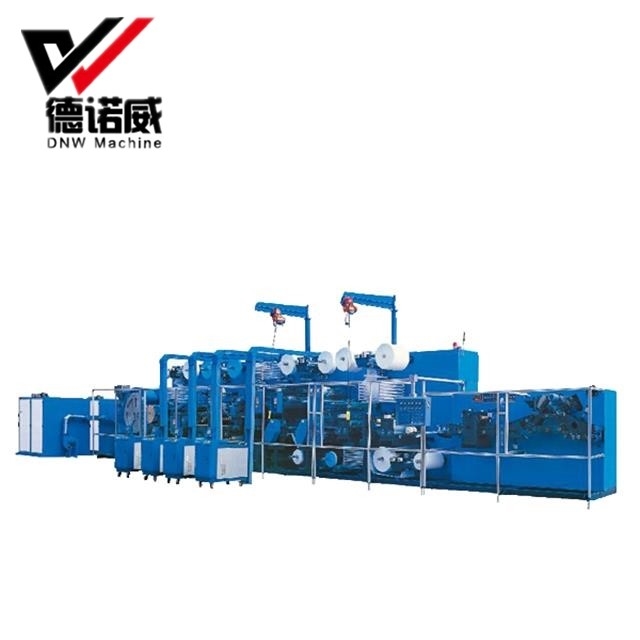

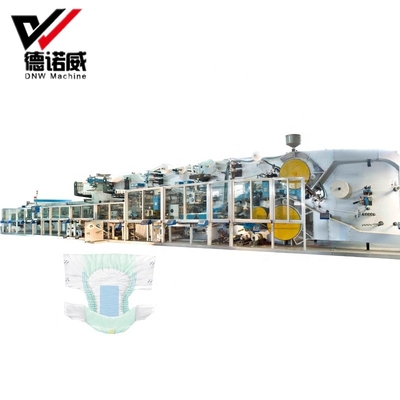

DNW Full servo high speed design adult diaper making machine

Subject	Parameter
Overall size(LWH)	24M4M3.6M(For reference only)
Machine size(LWH)	22m2.1m3.3m,based on the product provided by client
Design speed	300pcs/min
Stable speed	160pcs/min
Pass precentage	98%
Work efficiency	85%-90%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 400KW
Air pressure	0.6-0.8Mpa
Machine weight	About 95T
Machine color	Customized

Configuration:
1. Product structure:

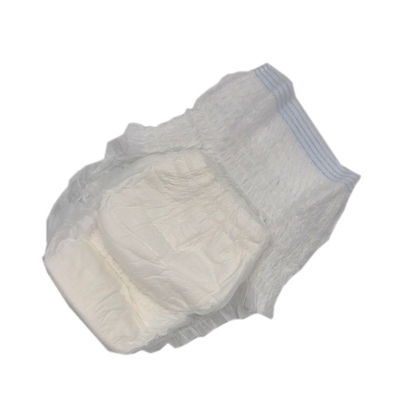

Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.
2. Product size:
M: 680*450 L: 800*650XL: 950*760
3. Control system:
PLC control system,operating on the touch screen,man-machine interface
4.Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.
5.Drive system:
Timing belt and flat belt are imported products,and all the key parts are imported bearings.
6.Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.
7.Packing way:
Equipped with the stacker at the request of client.
8.Materials corrective system:
Germany BST automatic web guide system(optional)

Main Product:

1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Pr
