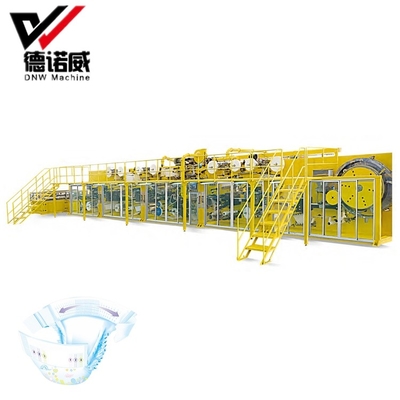

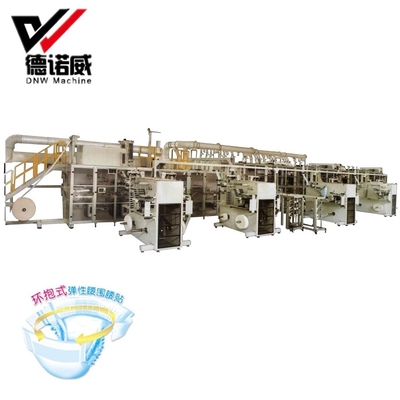

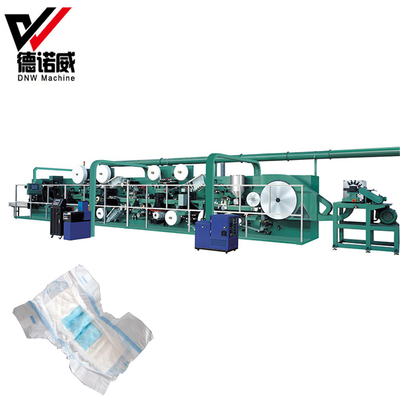

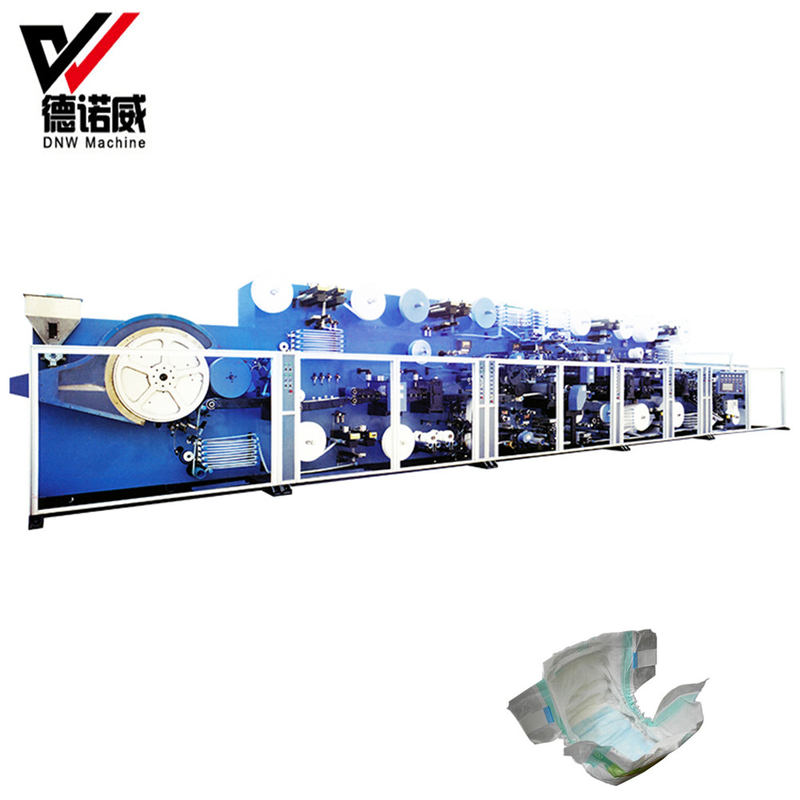

Disposable Semi Automatic Baby Adult Diaper&Women Sanitary Napkin Making and Packing Machine

Product Details:

Place of Origin:	Fujian,China
Brand Name:	DNW Machine
Certification:	CE,IOS9001
Model Number:	DNW-BD60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$338000
Packaging Details:	Normal package
Delivery Time:	180 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets /year

Contact Now

Detailed Product Description

Applicable Industries:	Manufacturing Plant	Condition:	New
Processing Type:	Laminating Machine	Production Capacity:	600 Pieces/Min
Video Outgoing-inspection:	Provided	Product Type:	Diaper Machine
Voltage:	380V 50HZ	Warranty:	1 Year
Computer Control Panel:	Computer Control Panel	After-sales Service:	Professional Technical Guidance

Disposable Semi Automatic Baby Adult Diaper&Women Sanitary Napkin Making and Packing Machine

Drive system:

Full servo drive,digital size change,ensure run synchronized at full process.The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.

Product size: S: 390*320M: 450*320 L: 500*330XL: 525*330

Control system:

PLC control,HMI operation,LED digital display,graphic digitization control.

Item No.:
DNW-123
Payment:
30% T/T deposit,70% Balance before shipping
Product origin:
China
Color:
Customized
Shipping port:
Xiamen
Lead Time:
About 180days
Price Range:
$423000-$865000/set

Product Details

DNW-16 High speed design servo big waistband baby diaper machine

Subject	Parameter
Overall size(LWH)	28M4M3.6M(For reference only)
Machine size(LWH)	25m2.1m3.3m,based on the product provided by client
Design speed	600pcs/min
Stable speed	450pcs/min
Pass precentage	98%
Work efficiency	90%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 300KW
Air pressure	0.6-0.8Mpa
Machine weight	About 70T
Machine color	Customized

Configuration:
1. Product structure:
Up & Down Tissue Fluff core(mix with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,S cut Tape,Elastic waistband lamination online.
2. Product size:
S: 390*320M: 450*320 L: 500*330XL: 525*330
3. Control system:
PLC control system,operating on the touch screen,man-machine interface
4.Tension system:
Tension unwinding equipped,constant tension control with buffer system,automatic web guide system,The unwiding system ensure materials stable working at full speed splice,minimize the impact on materials tension force,to reduce the machine stop frequency.
5.Drive system:
Full servo drive,digital size change,ensure run synchronized at full process.The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
6.Safety system:
Safety guard installed at the operating side,with security identifier,emergency stop switch at per segment,Driven side is equipped with the radiator system and safety wire.
7.Packing way:
Auto stacker as customized design(one push two exit)
8.Materials corrective system:
